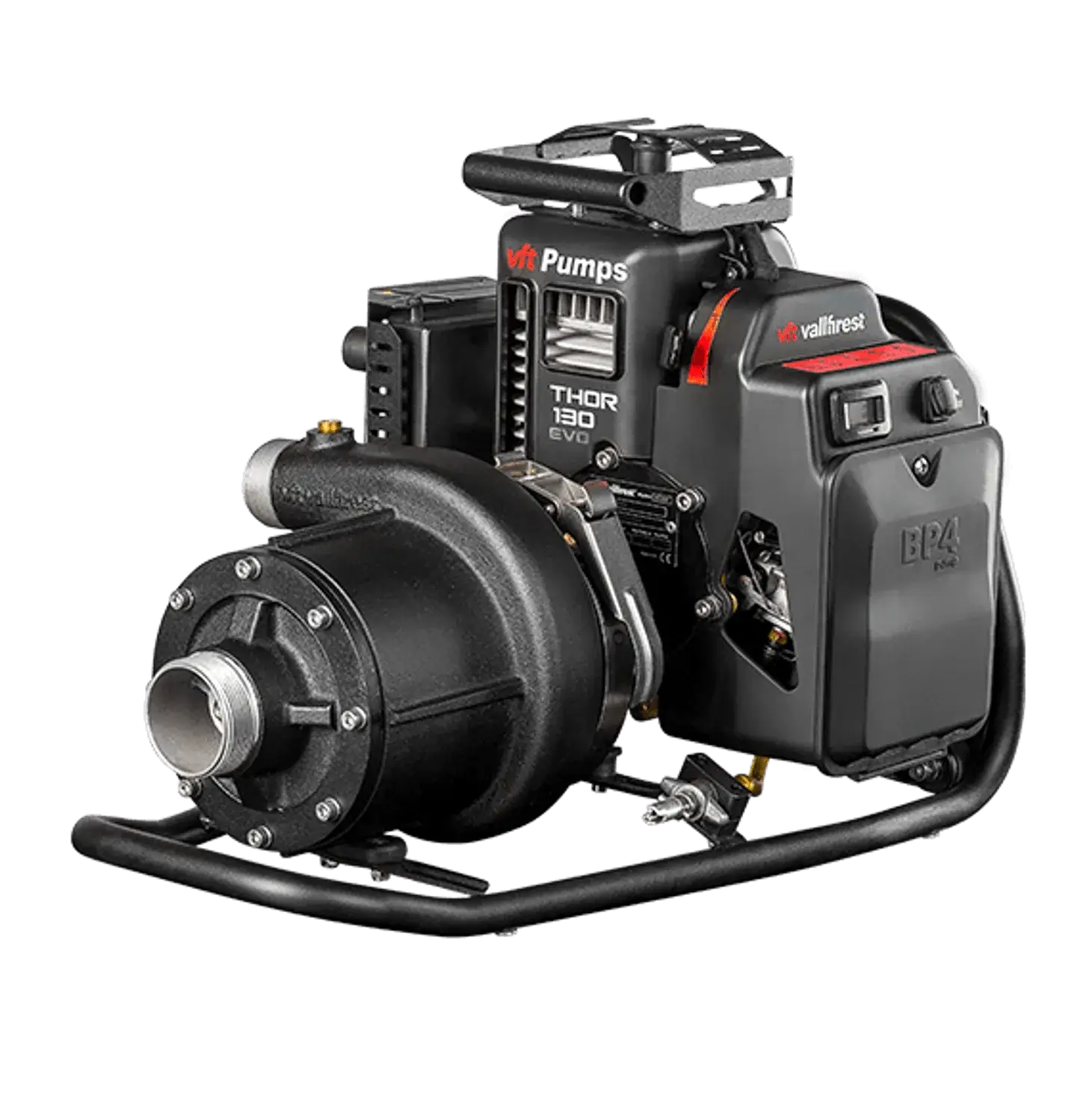

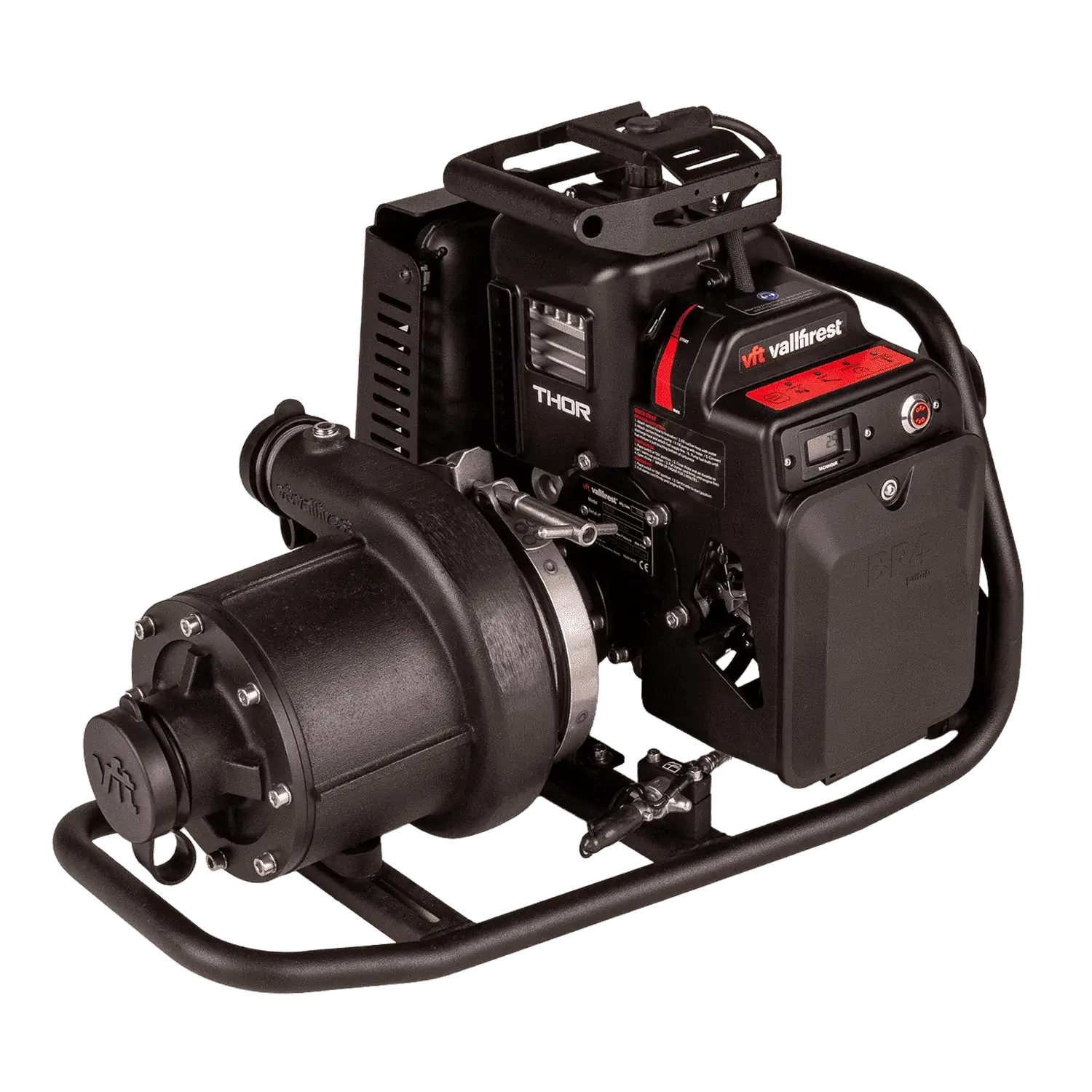

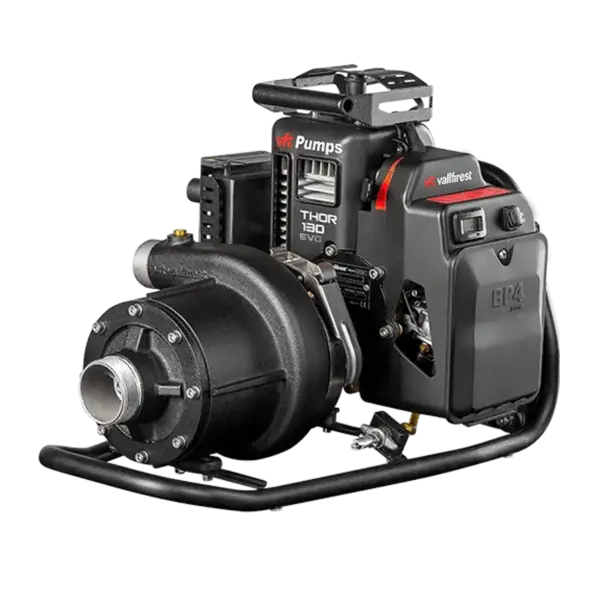

Black Panther 4 Portable Pump

The Vallfirest Black Panther 4 (BP4) is a lightweight, powerful portable pump for rapid wildland response. This fire pump is designed for rapid intervention in wildland fires that combines maximum power, small size and lightness. Thanks to an efficient 4-stage centrifugal pump and the new Thor 130 Evo motor from the Italian brand POLINI, it allows working with high flow and pressure at long distances and elevations, delivering high pressure while maintaining compact dimensions. It has a quick coupling system for the 4-stage pump that allows it to be replaced in the shortest possible time if a breakdown occurs.

Features

• Extremely light, compact and resistant.
• Ergonomic structure for comfortable hauling.
• Transport option with vft hose carrying backpack.
• Easy-pull rope manual start system.
• Pump compatible with foam-forming agent.
• Automatic electronic stop to protect the pump from overspeed due to a loss of pump filling.
• VFT_4SP pump easily interchangeable thanks to a quick release clamp.
• Protective mechanisms in the exhaust and a motor cylinder to protect users from burns.
• Intuitive user interface with a LED panel.
• Built-in tachometer for hours / rpm.

Key Benefits

• Quickly match performance to application — quick connect swap between 2-stage, 3-stage and 4-stage depending on if you need more volume or more pressure for your application
• Easy to start — Starts on the first pull with minimum effort
• High pressure, compact size – Up to 380 PSI while remaining portable.
• Lightweight build – Only 48.5 lb (22 kg), designed for rapid deployment.
• Efficient engine – Reliable 10 HP 2-stroke engine with low fuel consumption.
• Rugged construction – Anodized aluminum, stainless steel, built for harsh conditions.
• Part of the Vallfirest ecosystem – Fully compatible with tanks, hoses, and accessories.

Applications

• Direct attack.
• Long hoses laid.
• Firefighting at great heights in mountainous areas.
• Accuracy in flow trajectory when structure fire fighting.
• Tandem pumping for long distances.
• Parallel pumping for higher volumes.

4-Stage Centrifugal Pump

• Provides up to 380 PSI and 97.7 gal/min.
• Compact, efficient and reliable.
• Housing and impellers made of hard-anodized, anti-corrosive aluminum.
• Shaft and other components made of stainless steel.
• Includes a high-quality mechanical seal specifically designed for the Vallfirest pumps.
• Suction: 2” NPSH inlet, 1.5” NPSH outlet.
• Compatible with foam concentrate and easily replaceable via quick-release clamp.

10HP Polini Thor 130 Evo Engine

• 2-stroke air-cooled engine with manual start and overspeed auto-shutdown for unprimed pump protection.
• Lightweight and efficient, weighing only 27.6 lb (12.5 kg) with low fuel consumption.

Optional Accessories

• Thread protectors
• Coupling wrench
• Foot valve
• Suction hose
• Manual priming pump
• 12 L and 25L external fuel tank and fuel line
• Load-hauling packpacks
• Pump repair kit
• Hose choke
• Protection base

Certified Standards

• 2006/42/CE
• UNE EN-14466:2006+A1 2009
• UNE-EN 1028-2:2003+A1 2008

Technical Specifications

Emissions certificate: EU stage V, EPA, CARB
Centrifugal pump: 4-stage VFT
Dimensions: 20.9″ x 13″ x 14.6″ (53cm x 33cm x 37cm)
Engine:Polini Thor 130 2-stroke gasoline
Power: 10HP @ 6,500RPM
Displacement: 125cm³
Maximum flow: 97.7gal/min (370 L/min)
Maximum pressure: 380 PSI
Starter: Recoil starter
Fuel tank: Built-in, 1.61 gal (6.1 L)
Weight (dry): 48.5 lbs | 22 kg
